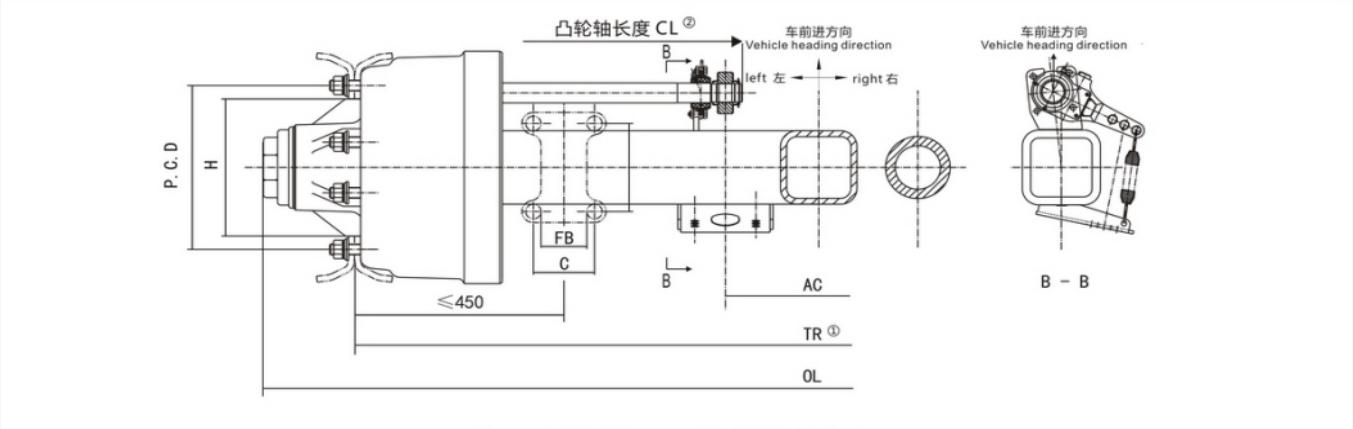

| Part No. | Max Capacity | Track | Brake Size (mm) | Wheel Fixing | Bearing | Total Length | |||||
| (kg) | Axle Beam | TR | Center Distance of Chamber | Wheel | OL(mm) | ||||||
| (mm) | (mm) | AC(mm) | Stud (mm) | P.C.D | H | ||||||
| (mm) | (mm) | ||||||||||
| BTAA-001 | 11500 | φ127 | 1820 | 370 | S420*180 | 10-M22*1.5 | φ285.75 | φ221 | 7.5V-20 | HM518445 /10 | ~2183 |
| BTAA-002 | 11500 | φ127 | 1820 | 370 | S420*180 | 10-M22*1.5 | φ335 | φ281 | 7.5V-20 | HM518445 /10 | ~2183 |
| BTAA-003 | 11500 | φ127 | 1970 | 396 | S420*180 | 10-M22*1.5 | φ285.75 | φ221 | 7.5V-20 | HM518445 /10 | ~2296 |
| BTAA-004 | 11500 | φ127 | 1970 | 396 | S420*180 | 10-M22*1.5 | φ335 | φ281 | 7.5V-20 | HM518445 /10 | ~2296 |
| BTAA-005 | 13000 | φ127 / □150 | 1820 | 360 | S420*180 | 10-M22*1.5 | φ285.75 | φ221 | 7.5V-20 | HM518445 /10 | ~2159 |
| BTAA-006 | 13000 | φ127 / □150 | 1820 | 360 | S420*180 | 10-M22*1.5 | φ335 | φ281 | 7.5V-20 | HM518445 /10 | ~2159 |
| BTAA-007 | 13000 | φ127 / □150 | 1970 | 396 | S420*180 | 10-M22*1.5 | φ285.75 | φ221 | 7.5V-20 | HM518445 /10 | ~2296 |
| BTAA-008 | 13000 | φ127 / □150 | 1970 | 396 | S420*180 | 10-M22*1.5 | φ335 | φ281 | 7.5V-20 | HM518445 /10 | ~2296 |
| BTAA-009 | 13000 | φ127 | 1820 | 386 | S420*200 | 10-M22*1.5 | φ335 | φ281 | 7.5V-20 | HM518445 /10 | ~2155 |
| BTAA-010 | 13000 | φ127 | 1820 | 246 | S420*200 | 10-M22*1.5 | φ285.75 | φ221 | 7.5V-20 | HM518445 /10 | ~2155 |
| BTAA-011 | 13000 | φ127 | 2121 | 517 | S420*180 | 10-M22*1.5 | φ285.75 | φ221 | 7.5V-20 | HM518445 /10 | ~2459 |
① Optional track (TR) within 2750mm.
② Optional camshaft length based on AC≥223mm.
③Optional axle beam can be φ127 round,□127,□150 square.
